11 KV Power Surge Arrester

Brand Name : XK

Model Number : HY10W, HY5W

Certification : ISO9001 / GB / IEC

Place of Origin : CHINA

MOQ : 12 Pieces

Price : Negotiation

Standard : GB11032-2000

Application : electric power system

Product name : surge lightning arrester

Product Keywords : lightning arrester

Selling Units : Single item

Single package size : 43X30X35 cm

Single gross weight : 12.0 kg

Package Type : EXPORTING PACKAGE

Contact Now

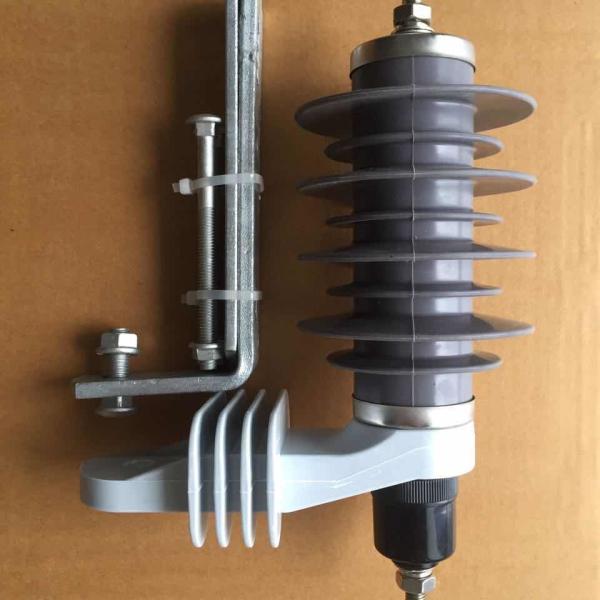

Polymer 11 KV Power Surge Arrester Medium Voltage In Transmission Line

XK polymer 11 KV metal oxide gapless surge arrester lightning arrester

Best selling hot chinese products retractable lifelines

Product Description

Metal Oxide Surge Arresters can be applied to a variety of systems including substation equipment, AC-DC converters, railway power system and power distribution units ranging from 0.25kV to 765kV systems. These surge arresters demonstrate excellent protection properties. surge arrester is a device to protect electrical equipment from over-voltage transients caused by external (lightning) or internal (switching) events.

Type	Rated voltage (kV)	MCOV (kV)	Residual voltage (KV)			2000ms square wave impulse current withstand	4/1OMS high current impulse (kV)
			Steep current impulse	switching current impulse	8/20 ms Lightning current impulse	2000ms square wave impulse current withstand	4/1OMS high current impulse (kV)
HY10W-3	3	2.55	9.5	7.7	9	100	100
HY10W-6	6	5.1	19.5	15.4	18	100	100
HY10W-9	9	7.65	28.5	23. 1	27	100	100
HY10W-10	10	8.4	36	30	23	250	150
HY10W-11	11	9.4	40	33	30	250	150
HY10W-12	12	10.2	38.0	30.8	36	200	100
HY10W-15	15	12.7	47.5	38.5	45	200	100
HY10W-18	18	15.3	57.0	46.2	54	200	100
HY10W-21	21	17.0	66.5	53.9	63	200	100
HY10W-24	24	19.2	76.0	61.6	72	200	100
HY10W-27	27	21.9	85.5	69.3	81	200	100
HY10W-30	30	24.2	95.0	76.5	90	200	100
HY10W-33	33	26.8	104.5	84.7	99	400	100
HY10W - 36	36	29	114.0	92.4	108	400	100
HY10W-42	42	34.1	132.3	100. 1	126	400	100
HY10W-48	48	39	152.0	126.0	150	400	100
HY10W-54	54	43	171.0	139.0	162	600	100
HY10W-60	60	48	208.0	160.0	180	600	100
HY10W-66	66	52.8	230.0	172.0	198	600	100
